RightMark Audio Analyzer test report
Test by JavaScience Consulting June 10, 2013
| Testing device | QuadBuffer Headphone Amp 10ohm loads + 10db Post Amp Vin=0.75Vp |
| Sampling mode | 16-bit, 44 kHz |
| Interface | Creative X-Fi Elite Pro Sound Card |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.0 dB / -0.0 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.02, -0.10 |
Excellent |
| Noise level, dB (A) | -96.0 |
Excellent |
| Dynamic range, dB (A) | 96.0 |
Excellent |
| THD, % | 0.0010 |
Excellent |
| THD + Noise, dB (A) | -89.4 |
Good |
| IMD + Noise, % | 0.0044 |
Excellent |
| Stereo crosstalk, dB | -95.4 |
Excellent |
| IMD at 10 kHz, % | 0.0047 |
Excellent |
| General performance | Excellent |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.23, +0.02 |
| From 40 Hz to 15 kHz, dB | -0.10, +0.02 |

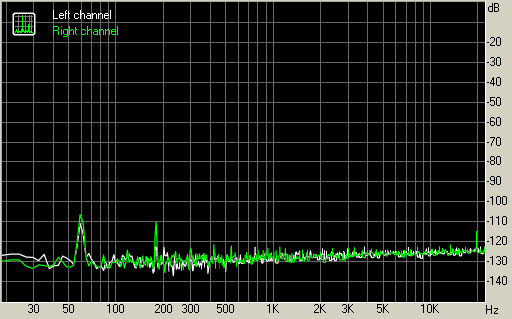

Noise level
Left |
Right |
|
| RMS power, dB | -95.0 |
-94.5 |
| RMS power (A-weighted), dB | -96.1 |
-95.9 |
| Peak level, dB FS | -79.5 |
-79.5 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +95.0 |
+94.8 |
| Dynamic range (A-weighted), dB | +96.1 |
+95.9 |
| DC offset, % | -0.00 |
-0.00 |

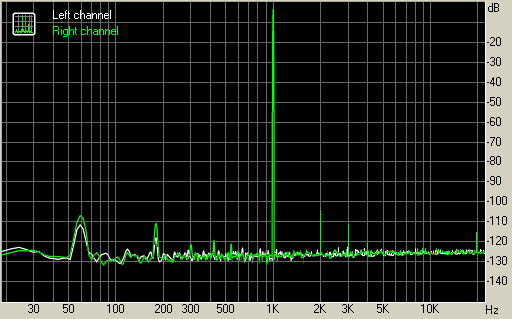

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0010 |
+0.0010 |
| THD + Noise, % | +0.0037 |
+0.0038 |
| THD + Noise (A-weighted), % | +0.0034 |
+0.0034 |

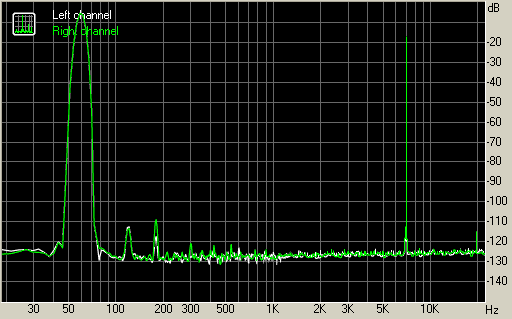

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0044 |
+0.0045 |
| IMD + Noise (A-weighted), % | +0.0039 |
+0.0039 |

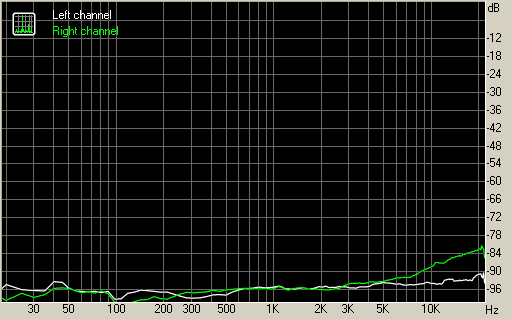

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -98 |
-99 |
| Crosstalk at 1000 Hz, dB | -94 |
-95 |
| Crosstalk at 10000 Hz, dB | -93 |
-87 |

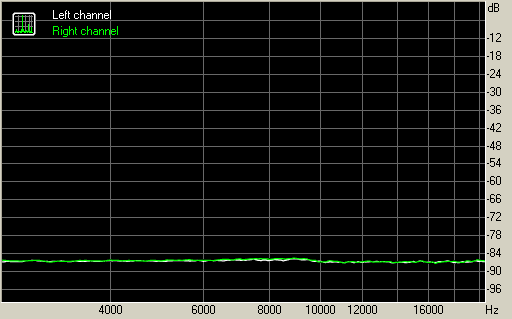

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0047 |
0.0048 |
| IMD + Noise at 10000 Hz, | 0.0047 |
0.0046 |
| IMD + Noise at 15000 Hz, | 0.0047 |
0.0046 |
