S23 Ultra & SVBONY ED 20-60x80mm Monocular
Dec 2024
This page provides a few initial examples of using the SVBONY ED 20-60x80mm monocular for astrophotography with the S23 Ultra smartphone. Exposures and focus are manual in Pro mode using the main X1 W camera. No star tracking was used so some slight star-trailing is evident. Except for a small amount of sharpening in some images, no other image filters or modifications were used.
This premium ED monocular is suitable for viewing and photographing the moon, nebulae, star clusters, closer planets and galaxies and double stars with separation wider than ~ 4 ∠ ".

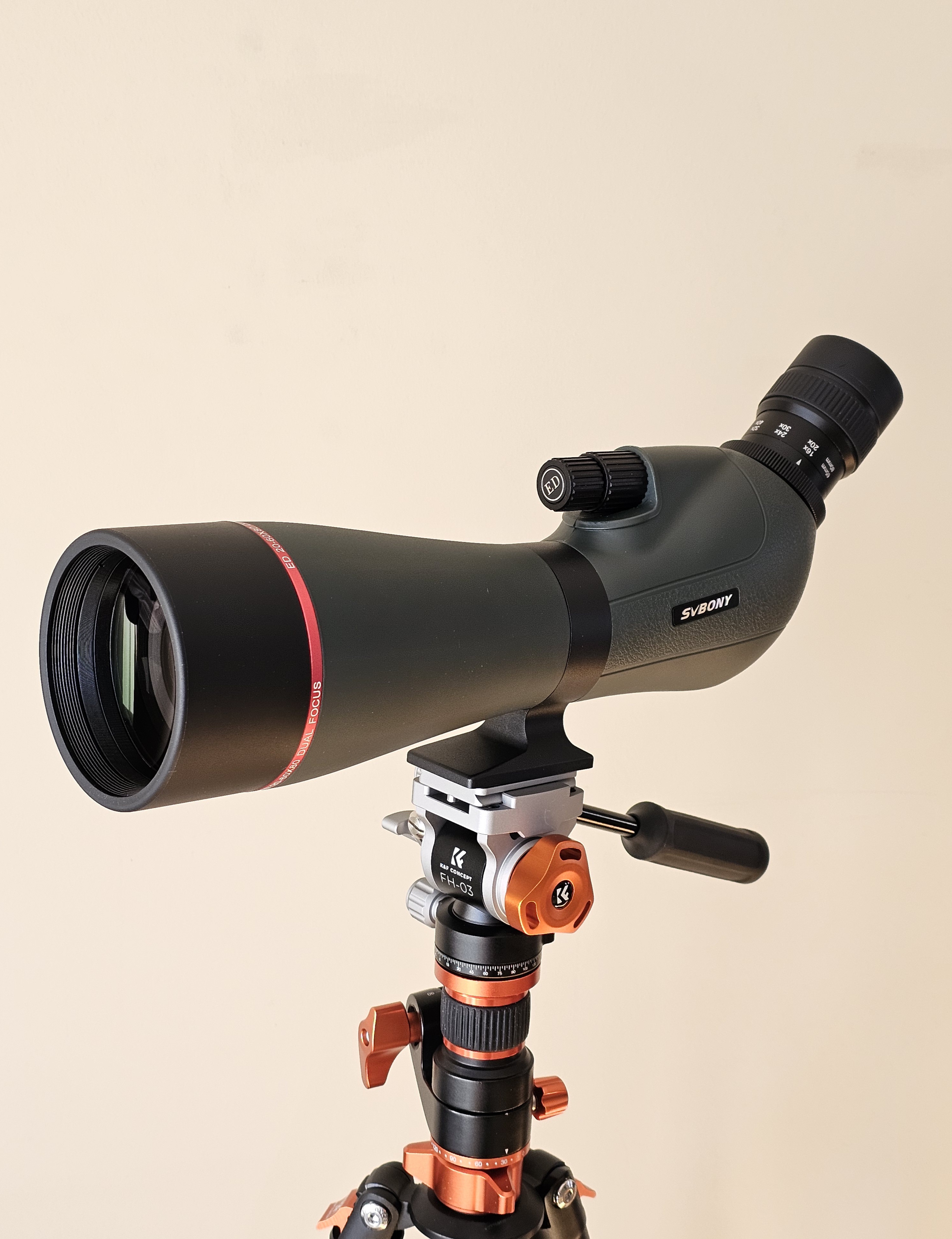

The 1.6 kg monocular was mounted on a K&F tripod with suitable 10 kg capacity.
A CelticBird phone adapter was used to couple the S23 Ultra smartphone to the monocular eyepiece.
The 80 mm diameter objective captures significantly more light than the typical ~ 4 mm smartphone camera lenses and more detail resolution (in moon shots and wider double stars) with the larger diameter lens than the typical 4 mm smartphone camera lens.
SVBONY claims an angular resolution of 2 ∠ " for this monocular (the theoretical Dawe's limit resolution for a perfect 80 mm objective lens is ~ 1.5 ∠ ").
Carefully measured visual field of views for the 20-60x zoom range are:
20X 1.91°
40X 1.23°
60X 0.95°
SBBONY Photo FOV with S23 Ultra Camera
Photos Nov 2024 were taken from a rural region Carleton Place of ~ Bortle 4.5 darkness. Click images to see full view and alternate images.
Moon, Orion Nebula, Pleiades, Jupiter/Saturn, Mizar double & Alcor, Beehive Star Cluster
(all times EST Carleton Place, Ont)
Moon 1: Nov 09, 5:26pm ISO-50 1/125sec SVB-x60 S23-x1.6
Moon 2: Nov 13, 2:16am ISO-50 1/125sec SVB-x60 S23-x1.3
Moon 3: Nov 13, 5:59pm ISO-50 1/350sec SVB-x60 S23-x1.8
Moon 4: Nov 15, 8:10pm ISO-50 1/500sec SVB-x60 S23-x1.7
Moon 5: Nov 18, 7:20am ISO-50 1/180sec SVB=x60 S23-x1.7
Moon 6: Nov 19, 6:45am ISO-80 1/180sec SVB=x60 S23-x1.5
Moon 7: Nov 19, 6:29am ISO-50 1/250sec SVB=x60 S23-x1.4
Moon 8: Nov 25, 6:42am ISO-50 1/30sec SVB=x60 S23-x1.7
Moon 9 & Spica (0.13°) : Nov 27, 7:07am ISO-50 1/45sec SVB=x60 S23-x1.3
Orion 1: Nov 13, 2:44am ISO-3200 2sec SVB-x40 S23-x1.7
Orion 2: Nov 09, 10:58pm ISO-3200 1sec SVB-x60 S23-x1.0
Orion 3: Nov 09, 11:09pm ISO-1600 1/3sec SVB-x60 S23-x3.6
Pleiades 1: Nov 09, 10:12pm ISO-3200 2sec SVB-x20 S23-x1.0
Pleiades 2: Nov 09, 10:21pm ISO-1600 2sec SVB-x20 S23-x1.3
Pleiades 3: Nov 09, 10:22pm ISO-1600 1sec SVB-x30 S23-x1.2 Expert Raw
Jupiter 1: Nov 08, 10:32pm ISO-1600 1/10sec SVB-x60 S23-x1.8
Jupiter 2: Nov 09, 10:03pm ISO-50 1/3sec SVB-x40 S23-x4.0
Jupiter 3: Nov 09, 10:04pm ISO-50 1/90sec SVB-x40 S23-x8.9
Saturn 4: Nov 09, 05:40pm ISO-50 1/3sec SVB-x60 S23-x3.3
Mizar/Alcor: Nov 09, 6:00pm ISO-250 1/2sec SVB-x40 S23-x1.9
Beehive (M44): Nov 13, 3:06am ISO-3200 1sec SVB-x20 S23-x1.5
Ring Nebula (M57): Nov 16, 7:01pm ISO-1600 2sec SVB-32mmEP S23-x1.7
Andromeda Galaxy (M31): Nov 18, 6:57pm ISO-3200 4sec SVB-x10 S23-x1.5
