X-Fi LineIn
X-Fi AuxIn

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz




Summary

TestX-Fi LineInX-Fi AuxIn
Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.08+0.01, -0.08
Noise level, dB (A): -112.8-113.1
Dynamic range, dB (A): 112.8113.1
THD, %: 0.00060.0006
IMD + Noise, %: 0.00090.0011
Stereo crosstalk, dB: -108.9-109.7

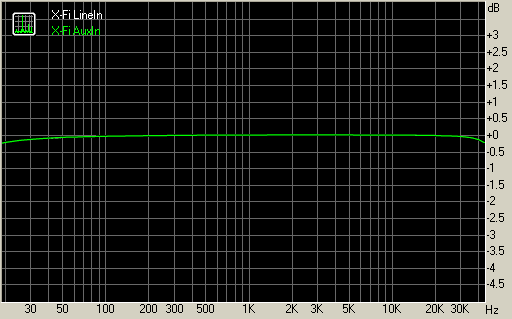

Frequency response

Spectrum graph

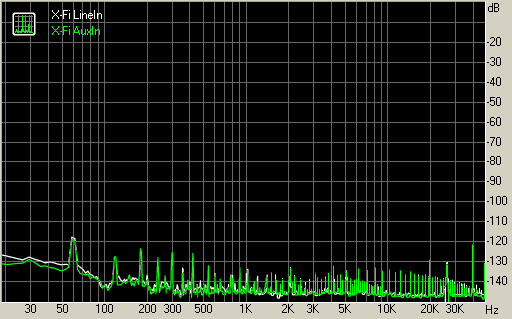

Noise level

Spectrum graph


Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph


Intermodulation distortion

Spectrum graph

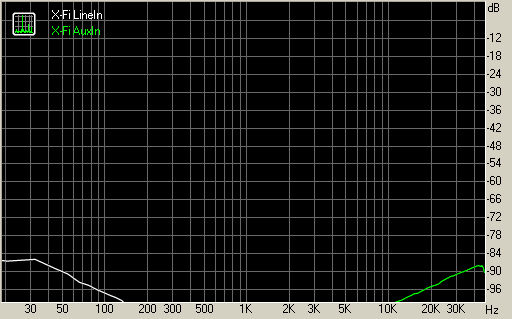

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
