BDP83 StereoOut
BDP83 FL_FR Surround
X-Fi Elite Pro line-out-> line-in loopback

May 02, 2010

RightMark Audio Analyzer test


Testing chain: Record test waves & loopback
Sampling mode: 24-bit, 96 kHz

BDP-83 player tests Reference X-Fi Elite Pro



Summary

TestBDP83 StereoOutBDP83 FL_FR SurroundX-Fi Elite Pro line-out-> line-in loopback
Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.05+0.06, -0.06+0.01, -0.09
Noise level, dB (A): -110.4-108.8-110.6
Dynamic range, dB (A): 110.6108.9111.2
THD, %: 0.00160.00130.0009
IMD + Noise, %: 0.00190.00210.0013
Stereo crosstalk, dB: -103.7-104.0-108.9

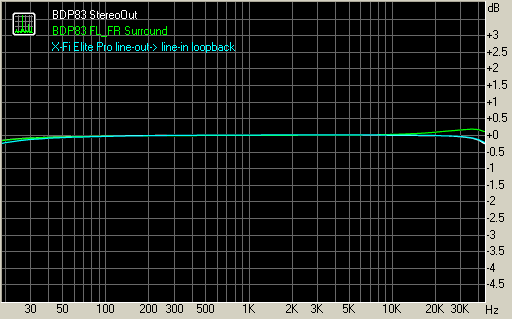

Frequency response

Spectrum graph

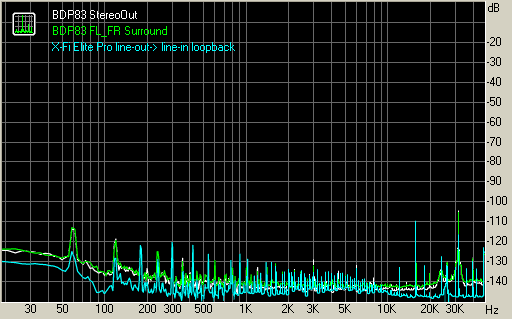

Noise level

Spectrum graph

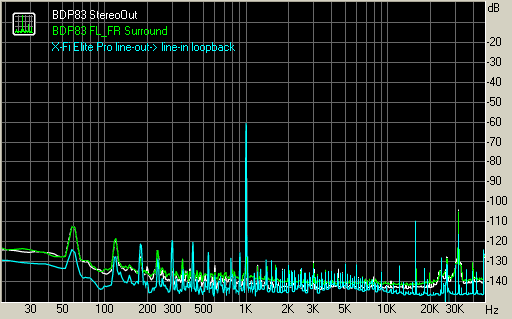

Dynamic range

Spectrum graph

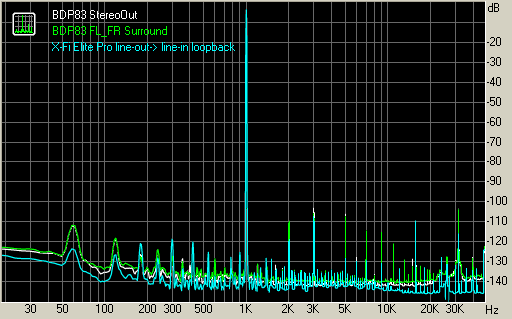

THD + Noise (at -3 dB FS)

Spectrum graph

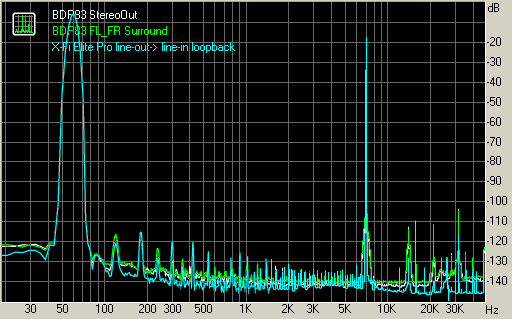

Intermodulation distortion

Spectrum graph

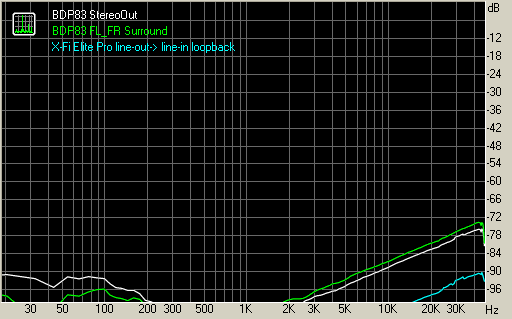

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
