Creative SoundBlaster Audigy2 ZS Notebook

RightMark Audio Analyzer test

Testing chain: S/PDIF Optical loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz

Dell Latitude C800 860 MHz WinXP Pro Signal: -1.0 dB

Summary

General performance: Excellent

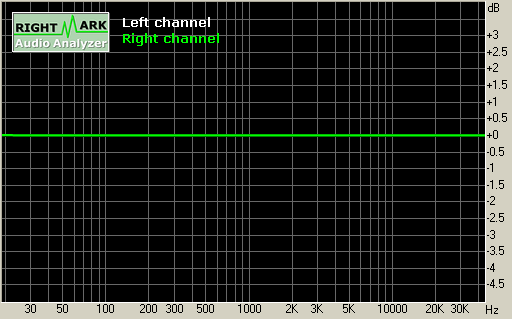

Frequency response

Frequency range	Response
From 20 Hz to 20 kHz, dB	-0.00, +0.00
From 40 Hz to 15 kHz, dB	-0.00, +0.00

Noise level

Parameter	Left	Right
RMS power, dB:	-144.5	-144.4
RMS power (A-weighted), dB:	-149.1	-149.2
Peak level, dB FS:	-138.5	-138.5
DC offset, %:	0.00	0.00

Dynamic range

Parameter	Left	Right
Dynamic range, dB:	+133.8	+133.8
Dynamic range (A-weighted), dB:	+133.2	+133.2
DC offset, %:	0.00	0.00

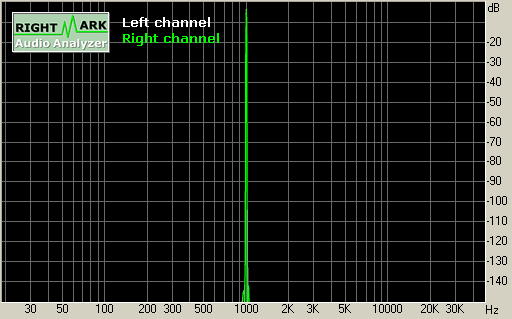

THD + Noise (at -3 dB FS)

Parameter	Left	Right
THD, %:	0.0000	0.0000
THD + Noise, %:	0.0000	0.0000
THD + Noise (A-weighted), %:	0.0000	0.0000

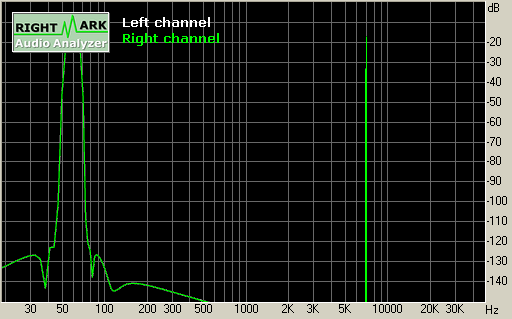

Intermodulation distortion

Parameter	Left	Right
IMD + Noise, %:	0.0002	0.0002
IMD + Noise (A-weighted), %:	0.0001	0.0001

Stereo crosstalk

Parameter	L <- R	L -> R
Crosstalk at 100 Hz, dB:	-150	-147
Crosstalk at 1 kHz, dB:	-148	-146
Crosstalk at 10 kHz, dB:	-144	-144

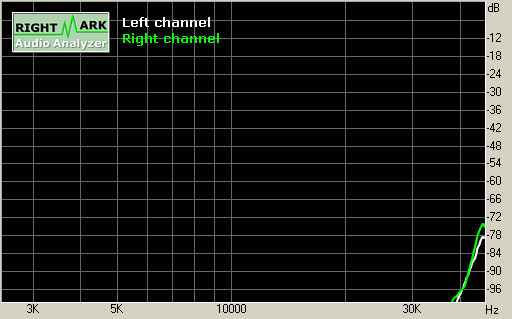

IMD (swept tones)

Parameter	Left	Right
IMD + Noise at 5 kHz, %:	0.0000	0.0000
IMD + Noise at 10 kHz, %:	0.0000	0.0000
IMD + Noise at 15 kHz, %:	0.0000	0.0000
