VSX9140txh_pure
BDP_95_L_R

RightMark Audio Analyzer test


Testing chain: USB Media Playback
Sampling mode: 24-bit, 96 kHz

(1) BDP-95 HDMI to VSX9140TXH --> FL/FR preamp out (2) BDP-95 L/R line-out




Summary

TestVSX9140txh_pureBDP_95_L_R
Frequency response (from 40 Hz to 15 kHz), dB: +0.02, -0.12+0.01, -0.05
Noise level, dB (A): -103.5-112.2
Dynamic range, dB (A): 103.7112.3
THD, %: 0.00110.0002
IMD + Noise, %: 0.00370.0009
Stereo crosstalk, dB: -96.4-106.7

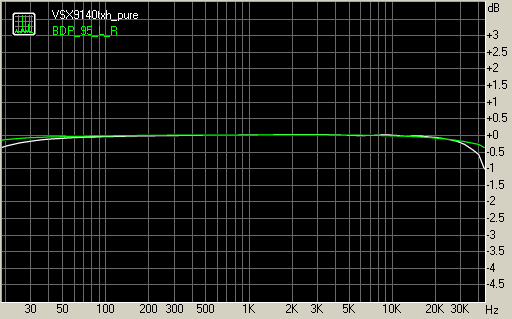

Frequency response

Spectrum graph

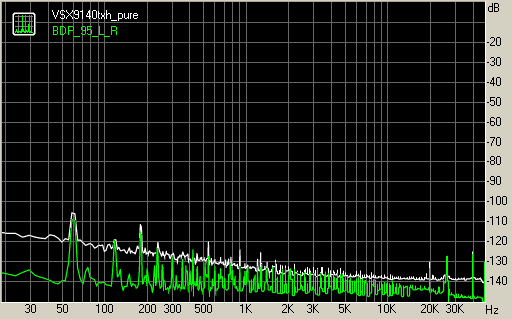

Noise level

Spectrum graph

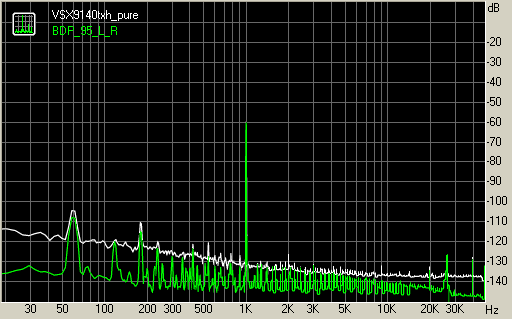

Dynamic range

Spectrum graph

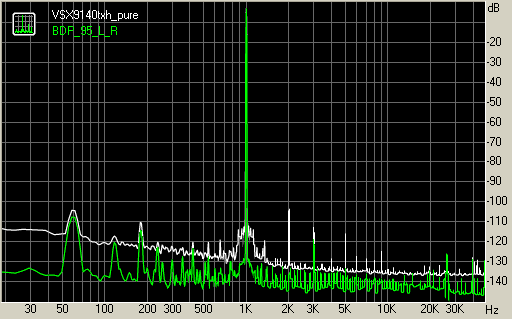

THD + Noise (at -3 dB FS)

Spectrum graph

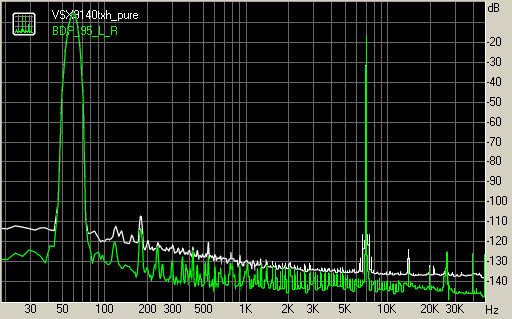

Intermodulation distortion

Spectrum graph


Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
